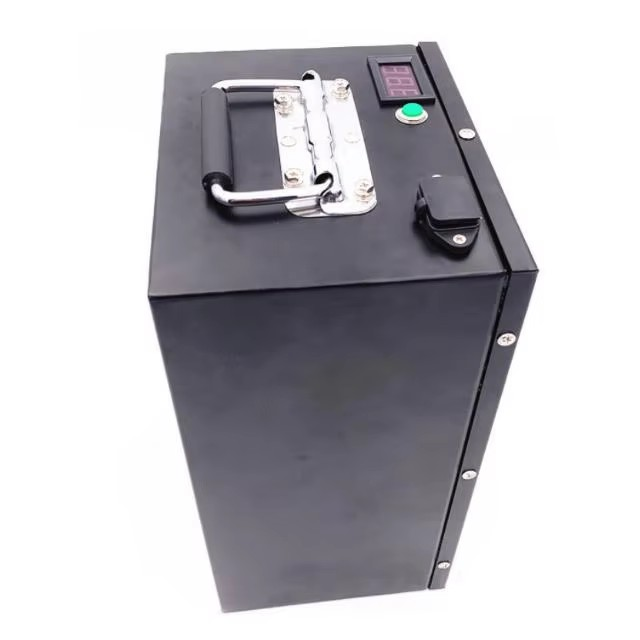

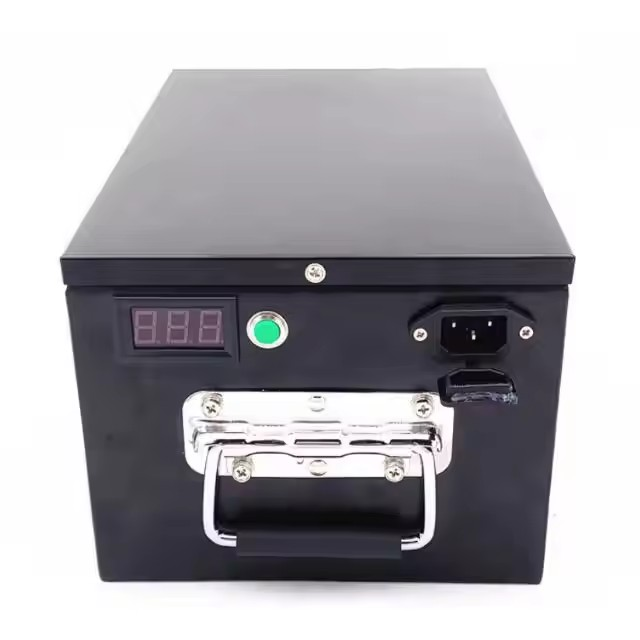

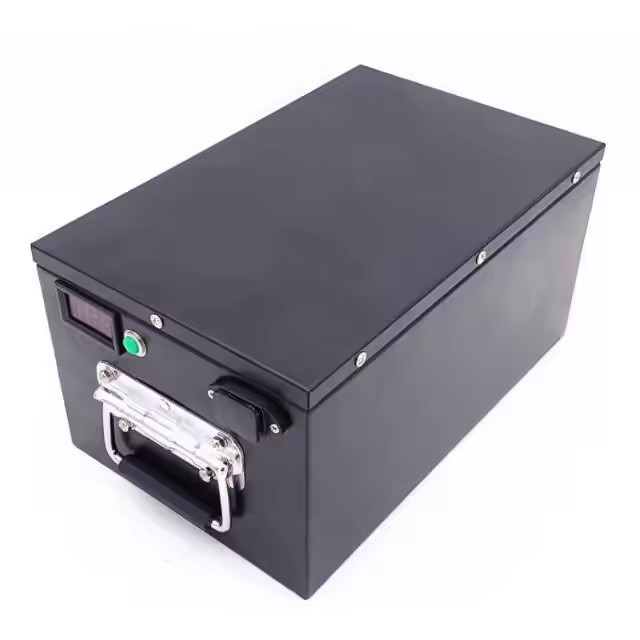

60V 100Ah LiFePO4 Lithium Ion Battery For AGV Smart Robot

2025-01-13 05:29

Specifikacija

Punktas	Specifikacija	Pastaba
Nominali įtampa:	60V	Any voltage can be customized
Nominali talpa:	100Ah	Any capacity can be customized
Discharge Cut-Off:	47.5V
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
Varža:	≤200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Mokėjimo būdas:	CC / CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
Matmenys:	Flexible	Any dimension can be customized
Svoris:	120KG

funkcijos

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

Įmontuotas BMS

Punktas	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Mokestis Virš dabartinės apsaugos	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
Biudžeto įvykdymo patvirtinimas Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
Trumpas protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	Matmenys	Svoris	with BMS	RS485/Bluetooth	Cycles	Garantija
60V 10AH	195*165*175mm	9.5kg	Taip	Yra	6000times	5 metai
60V 20AH	330*175*220mm	19 kg	Taip	Yra	6000times	5 metai
60V 30AH	407*175*235mm	25 kg	Taip	Yra	6000times	5 metai
60V 40AH	407*175*235mm	28kg	Taip	Yra	6000times	5 metai
60V 50AH	525*240*215mm	44kg	Taip	Yra	6000times	5 metai
60V 120AH	420*360*550mm	84kg	Taip	Yra	6000times	5 metai
60V 200AH	1000*600*182mm	156kg	Taip	Yra	6000times	5 metai

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

Taikymas

Mūsų gamykla

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



DUK

1.Q: Ar palaikote pavyzdinį užsakymą?

A: Taip, kviečiame užsisakyti pavyzdį, turime sandėlius Jungtinėse Amerikos Valstijose ir Europoje, kai kuriuos pavyzdžius galima greitai išsiųsti.

2.Q: Ar gaminys turi įmontuotą BMS?

A: Taip, išmanioji BMS sistema, įskaitant integruotą JBD/PACE/SmarTec, užtikrinančią išmanų akumuliatorių valdymą.

3.Q: Can your company accept customized order ?

A: Žinoma, pritaikymas yra mūsų stiprybė.

4.Q: Ar akumuliatorių blokas gali būti suderinamas su rinkoje esančiais keitikliais?

A: Taip, pone, mūsų baterijos suderinamos su daugiau nei 20 rinkoje esančių keitiklių prekių ženklų, įskaitant „Victron“, „Goodwe“, „Solis“, „Growatts“, „Voltronics“, „Deye“ ir kitus garsius prekių ženklus.

5.Q: Kaip garantija?

A: 5 years upto its usage.

6.Q: Ar turite kokių nors sertifikatų?

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7.Q: Kaip pristatymo būdas ir laikas?

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Ar turite tikrą gamyklą?

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
