Individualus gilus ciklas 36V 48V 72V 50ah 80ah 100ah ličio baterija golfo vežimėliui RV kemperiui

2024-03-15 02:39

LiFePO4 Battery for Golf Cart ( OEM/ODM )

TECHNICAL SPECIFICATION

Data sheetNominali įtampaNominalioji talpaNominal EnergyMatmuoSvoris
36V  (Support Customized Capacity/Size)
LFP36-5038,4 V50Ah1920Wh522*238*218mm≈18.5kg
LFP36-6038,4 V60Ah2304 Wh522*238*218mm≈21kg
LFP36-8038,4 V80Ah3072Wh522*238*218mm≈25.5kg
LFP36-10038,4 V100Ah3840Wh522*238*218mm≈31kg
48V  (Support Customized Capacity/Size)
LFP48-5051,2V50Ah2560Wh522*238*218mm≈25kg
LFP48-6051,2V60Ah3072Wh522*238*218mm≈31kg
LFP48-8051,2V80Ah4096Wh522*238*218mm≈32.5kg

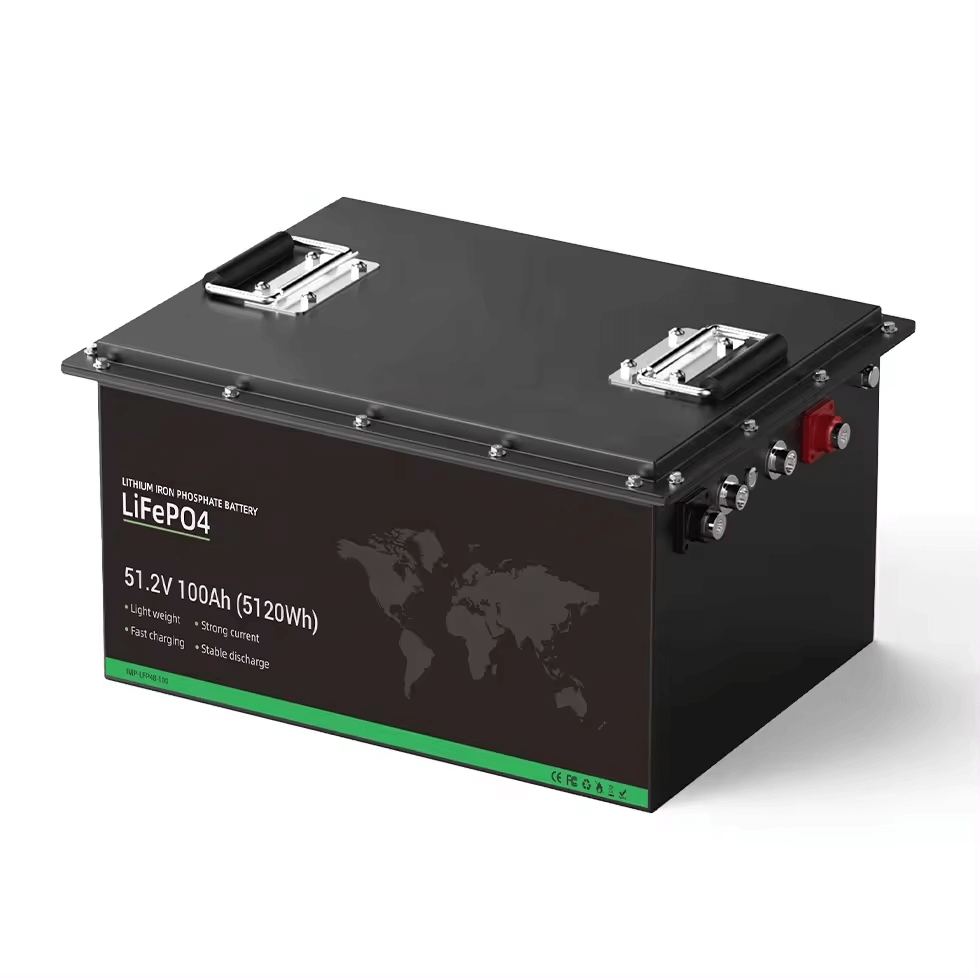

LFP48-10051,2V100Ah5120Wh640*245*220mm≈38.5kg
72V (Support Customized Capacity/Size)
LFP72-5076,8V50Ah3840Wh470*330*150mm≈50kg

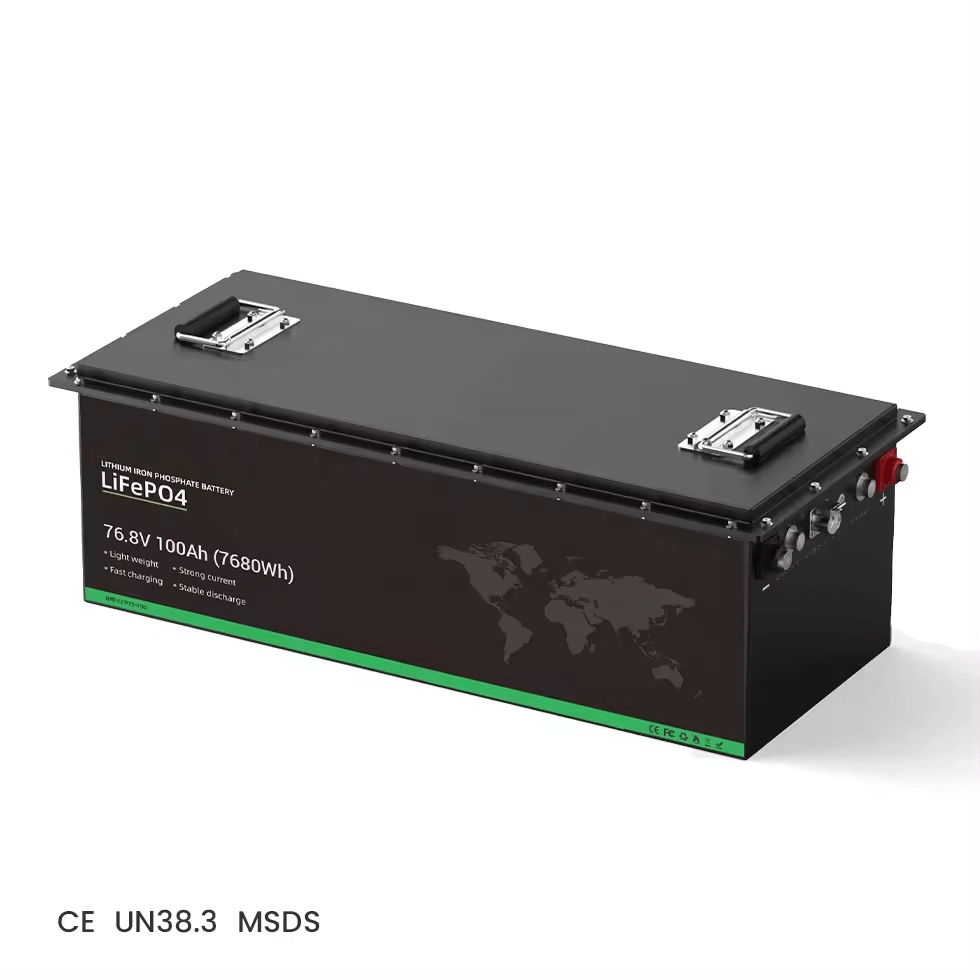

LFP72-10076,8V100Ah7680Wh730*350*150mm≈65kg
General
Gyvenimo ciklai≥6000 cycles (80%DOD), at 25°C
Įkrovimo temperatūra0 ~ 45°C (32 ~ 113°F)
Iškrovimo temperatūra-20 ~ 55°C(-4 ~ 131F)
Laikymo temperatūra-10 ~ 45°C(14 ~ 113°F)
Communication ModVehicle CAN/ Charge CAN/ Intranet CAN/

485 communication/ Wireless communication

The Right Choice

1. ALL IN ONE lithium batteries are drop-in solutions

2.Outlasts equivalent lead-acid batteries

3.Top quality standards and proven results in many applications

Spektaklis

  1. Single battery operation
  2. Little or no voltage drop
  3. Fast travel speed at all levels of discharge

ALL IN ONE Battery Safety and Sustainability

  1. No acid fumes or spills
  2. Reduce use of electricity
  3. Less waste
  4. 99% recyclable

Taikymas

Mūsų gamykla



Pristatymas ir pakavimas

1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3. Jei užsakymas didelis, gabenkite orlaiviu AIR arba OCEAN.

DUK

K: Ar esate prekybos įmonė ar gamintojas?
A: We are ALL IN ONE original factory from Anhui Province , China.

Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed

Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.

Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.

Kl .: Ar galiu turėti bandinius? O koks yra pavyzdžių užsakymo vykdymo laikas?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.

Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.

Kl .: Ar sutinkate su OEM / ODM?
A: Yes,it is available.We have OEM group to design battery case.

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.

Q. Does the app allow to check the voltage of each cell?
A: TAIP, programa leidžia bet kuriuo metu nuskaityti kiekvieno įtampą.

Kl .: ar tikrai turite akumuliatoriaus talpą?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.

Kl .: Kokius sertifikatus turite?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.

Kl .: ar turite MOQ?
A: Nėra ribojamas. Taip pat laukiame nedidelio užsakymo. Didesnė kaina yra geresnė, mes patikrinsime jums geriausią kainą.

Klausimas: kokia yra jūsų mokėjimo terminas?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。

Q. If your lithium battery goes into protection mode, how do you wake it up?
A: Ličio įkroviklių naudojimas akumuliatoriui pažadinti. Ličio įkroviklis automatiškai pažadina baterijas.

Pastaba: Esame baterijų gamintojas. Visi produktai nepalaiko mažmeninės prekybos, mes užsiimame tik B2B verslu. Prašome susisiekti su mumis dėl produktų kainų!
